ADP Laundry Essentials - Filler Panels

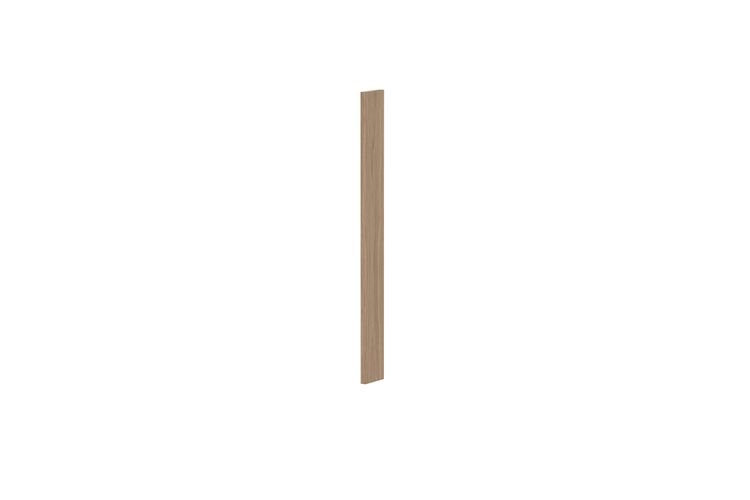

Floor Filler Panel:
16mm x 100mm x height of cabinet
Used for against or between wall installations, to ensure doors and drawers clear the wall or other obstructions.
Note that fillers are supplied at 16mm thickness and no alterations will be made to cabinet or benchtop sizing. Fillers need to be planed down to ensure benchtops cover the filler.
Benchtops come standard with 6mm overhang on the left and right of cabinets (total 12mm).
Tall Filler Panel:
16mm x 100mm x height of cabinet
Used for against or between wall installations, to ensure doors and drawers clear the wall or other obstructions.
Note that fillers are supplied at 16mm thickness and no alterations will be made to cabinet.
Floor End Panel:
16mm x height x depth of cabinet
End panels are not required for the Laundry Essentials range. Cabinets come standard with colour matched ends just like a vanity. Use end panels for customising your laundry or to support benchtops over appliances (custom benchtops not supplied by ADP).
Tall End Panel:
16mm x height x depth of cabinet
End panels are not required for the Laundry Essentials range. Cabinets come standard with colour matched ends just like a vanity. Use end panels for customising your laundry or to support benchtops over appliances (custom benchtops not supplied by ADP).
Wall Panel:
16mm x depth of cabinet x height of cabinet
Used for against or between wall installations, to ensure doors and drawers clear the wall or other obstructions.
Note that fillers are supplied at 16mm thickness and no alterations will be made to cabinet.
